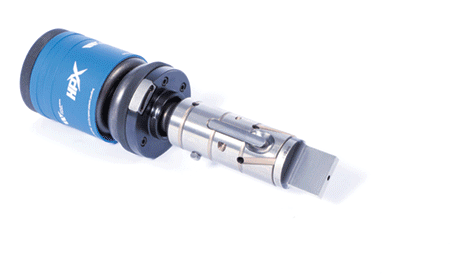

HPX® guide assemblies are specifically engineered to meet the needs of sheet metal manufacturers and provide the easiest set-up and use for thick turret tooling.
HPX guide assemblies run Wilson Tool’s patented EXP® punch tip tooling, which provide twice the life over traditional thick turret punches. Spend less time being down.
HPX® guide assemblies have been upgraded to include a push-button guide release for easy removal and installation, as well as a quick button release for the EXP® punch tip.
Wilson Tool’s patented HPX® guide assemblies now feature an easy-to-use button release for changing the EXP® punch tip. Same strength and reliability — now with the push of a button. Spend more time in production and less time looking for the blue key.
A- and B-station HPX® assemblies for thick turret tooling now have a push-button guide release. This design allows the guide to be removed or installed with the simple push of a button.
Available exclusively from Wilson Tool, Ultima® Premium Tool Steel is engineered to significantly increase wear-resistance over conventional tool steels. With up to twice as long between regrinds, Ultima punches substantially reduce downtime and tool replacement costs. Breaking, chipping, cracking, tool fatigue and other downtime problems are minimized, providing longer-term gains in productivity and profitability.
With each ‘click’ of the adjustment ring, the punch is lengthened or shortened by 0.13 mm. Precise adjustments can be achieved in seconds. Spend less time and energy adjusting your punch length when running HPX® guide assemblies.
